Product Summary

The SN74LVC138APWLE is a 3-LINE to 8-LINE decoders/demultiplexer. The SN74LVC138APWLE is designed for 2.7-V to 3.6-V VCC operation.

Parametrics

SN74LVC138APWLE absolute maximum ratings: (1)Supply voltage range:–0.5~6.5 V; (2)Input voltage range(2):–0.5~6.5 V; (3)Output voltage range(2) (3): –0.5 VCC + 0.5 V; (4)Input clamp current VI < 0: –50 mA; (5)Output clamp current VO < 0: –50 mA; (6)Continuous output current: ±50 mA; (7)Continuous current through VCC or GND: ±100 mA.

Features

SN74LVC138APWLE features: (1)Operate From 1.65 V to 3.6 V; (2)Inputs Accept Voltages to 5.5 V; (3)Latch-Up Performance Exceeds 250 mA Per JESD 17; (4)ESD Protection Exceeds JESD 22.

Diagrams

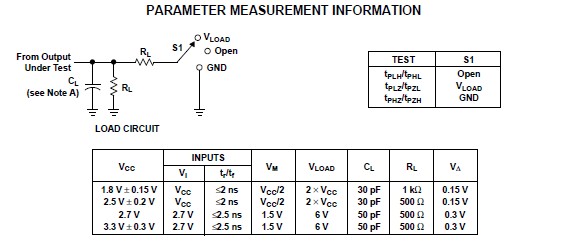

SN74LVC138APWLE PARAMETER MEASUREMENT INFORMATION
