Product Summary
The EL3H7 is a 4 pin ssop device which consists of an infrared emittingdiode, optically coupled to a phototransistor detector encapsulated with green compound. The EL3H7 is packaged in a 4-pin small outline SMD package. Applications include DC-DC Converters, Programmable controllers, telecommunication equipments and Signal transmission between circuits of different potentials and impedances.
Parametrics
EL3H7 absolute maximum ratings: (1)Input-Forward current: 50mA; (2)Input-Peak forward current (1us, pulse): 1A; (3)Input-Reverse voltage: 6v; (4)Output-Collector current: 50mA; (5)Output-Collector-Emitter voltage: 80V; (6)Output-Emitter-Collector voltage: 7V; (7)Total power dissipation: 200mW; (8)Operating temperature: -55 ~ +110℃; (9)Storage temperature: -55 ~ +125℃; (10)Soldering temperature: 260℃.
Features
EL3H7 features: (1)Halogens free; (2)Current transfer ratio; (3)High isolation voltage between input and output; (4)Compact 4 Pin SSOP with a 2.0 mm profile; (5)Pb free and RoHS compliant; (6)UL approved (No. 214129); (7)VDE approval (132249); (8)SEMKO approved; (9)NEMKO approved; (10)DEMKO approved; (11)FIMKO approved; (12)CSA approved.

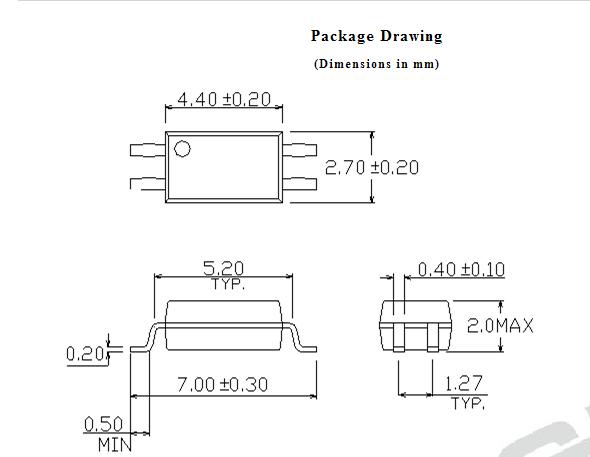

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EL3H7(A)(EA)-G |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(A)(EB)-VG |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(A)(TA)-G |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(A)(TA)-VG |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(A)(TB)-G |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(B)(EA)-G |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(B)(EA)-VG |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
|
EL3H7(B)(EB)-G |
Everlight |
Transistor Output Optocouplers 50-600CTR 3750Vrms -55 to +110 Op Temp |
Data Sheet |
|
|
||||||||||||||
