Product Summary

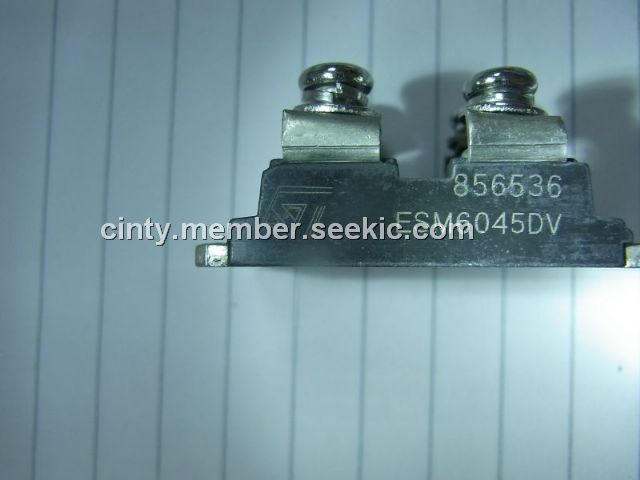

The ESM6045DV is a low junction case module. Industrial applications include motor control, smps, ups and welding equipment.
Parametrics
ESM6045DV absolute maximum ratings: (1)Collector-Emitter Voltage: 600V; (2)Collector-Emitter Voltage: 450V; (3)Emitter-Base Voltage: 7V; (4)Collector Current: 84A; (5)Collector Peak Current: 126A; (6)Base Current: 8A; (7)Base Peak Current: 16A; (8)Total Dissipation: 250W; (9)Storage Temperature: -55 to 150℃; (10)Max. Operating Junction Temperature: 150℃.
Features
ESM6045DV features: (1)high current power bipolar module; (2)very low junction case; (3)ultrafast freewheeling diode; (4)easy to mount; (5)low internal parasitic inductance.

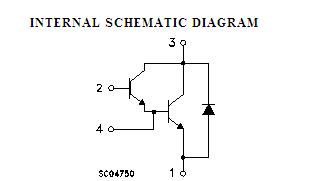

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ESM6045DV |
STMicroelectronics |
Transistors Darlington NPN Darl Power Mod |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
ESM6045DV |
STMicroelectronics |
Transistors Darlington NPN Darl Power Mod |
Data Sheet |
|
|
||||||||||||
|
ESM6045AV |
STMicroelectronics |
Transistors Darlington NPN Darl Power Mod |
Data Sheet |
Negotiable |
|
||||||||||||
