Product Summary

The MC9328MXSVP10 is an applications processor. The MC9328MXSVP10 processor features theadvanced and power-efficient ARM920T core thatoperates at speeds up to 100 MHz. Integrated modules,which include a USB device and an LCD controller,support a suite of peripherals to enhance portableproducts. It is packaged in a 225-contact MAPBGApackage. Figure 1 shows the functional block diagram ofthe i.MXS processor.

Parametrics

MC9328MXSVP10 absolute maximum ratings: (1)DC I/O Supply Voltage: -0.3 to 3.3v; (2)DC Internal (core = 100 MHz) Supply Voltage: -0.3 to 1.9v; (3)DC Analog Supply Voltage: -0.3 to 3.3v; (4)DC Bluetooth Supply Voltage: -0.3 to 3.3v; (5)ESD immunity with HBM (human body model): 2000v; (6)ESD immunity with MM (machine model): 100v; (7)Latch-up immunity: 200mA; (8)Storage temperature: -55 to 150℃.

Features

MC9328MXSVP10 features: (1)ARM920T Microprocessor Core; (2)AHB to IP Bus Interfaces (AIPIs); (3)External Interface Module (EIM); (4)SDRAM Controller (SDRAMC); (5)DPLL Clock and Power Control Module; (6)Two Universal Asynchronous Receiver/Transmitters (UART 1 and UART 2); (7)Serial Peripheral Interface (SPI); (8)Two General-Purpose 32-bit Counters/Timers; (9)Watchdog Timer; (10)Real-Time Clock/Sampling Timer (RTC); (11)LCD Controller (LCDC); (12)Pulse-Width Modulation (PWM) Module; (13)Universal Serial Bus (USB) Device; (14)Direct Memory Access Controller (DMAC); (15)Synchronous Serial Interface and an Inter-IC Sound (SSI/I2S) Module; (16)Inter-IC (I2C) Bus Module; (17)General-Purpose I/O (GPIO) Ports; (18)Bootstrap Mode.

Diagrams

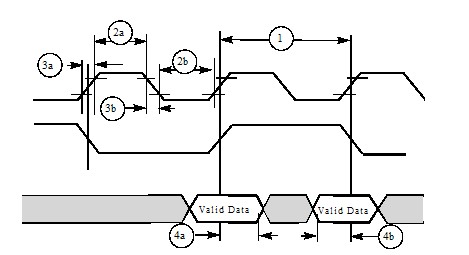

MC9328MXSVP10 Trace Port Timing Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MC9328MXSVP10
MC9328MXSVP10
Freescale Semiconductor
Processors - Application Specialized REDUCED FEATURE CORSICA
Data Sheet
0-87: $7.06
87-100: $5.93
100-500: $5.54
500-1000: $5.08
