Product Summary

The HIH-3610-002 is a humidity sensor which is designed specifically for high volume OEM (Original Equipment Manufacturer) users. Direct input to acontroller or other device is made possible by this sensor’s linear voltage output. With a typical current draw of only 200µA, the HIH-3610-002 is ideally suited for low drain, battery operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Individual sensor calibration data is available.

Parametrics

HIH-3610-002 performance specifications: (1)RH Accuracy: ±2% RH, 0-100% RH non-condensing; (2)RH Interchangeability: ±5% RH, 0-60% RH; (3)RH Linearity: ±0.5% RH typical; (4)RH Hysteresis: ±1.2% RH span maximum; (5)RH Repeatability: ±0.5% RH.

Features

HIH-3610-002 features: (1)Molded thermoset plastichousing with cover; (2)Linear voltage output vs% RH; (3)Laser trimmed interchangeability; (4)Low power design; (5)High accuracy; (6)Fast response time; (7)Stable, low driftperformance; (8)Chemically resistant.

Diagrams

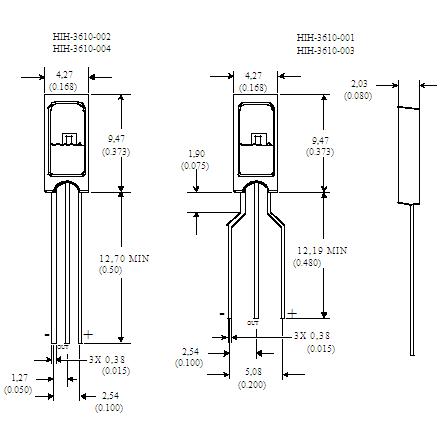

HIH-3610-002 MOUNTING DIMENSIONS
