Product Summary
The STM32F103RBT6 is a Performance line, ARM-based 32-bit MCU with Flash, USB, CAN, seven 16-bit timers, two ADCs and nine communication interfaces.
Parametrics
STM32F103RBT6 absolute maximum ratings: (1)Input voltage on five volt tolerant pin(2): VSS-0.3 to +5.5V; (2)Variations between different power pins: 50mV; (3)Total current into VDD power lines (source)(1): 150A; (4)Total current out of VSS ground lines (sink)(1): 150A; (5)Output current sunk by any I/O and control pin: 25mA; (6)Output current source by any I/Os and control pin: -25mA.
Features
STM32F103RBT6 features: (1)Clock, reset and supply management; (2)Low power; (3)2 x 12-bit, 1 μs A/D converters (16-channel); (4)DMA; (5)Debug mode; (6)Up to 80 fast I/O ports; (7)Up to 7 timers; (8)Up to 9 communication interfaces.

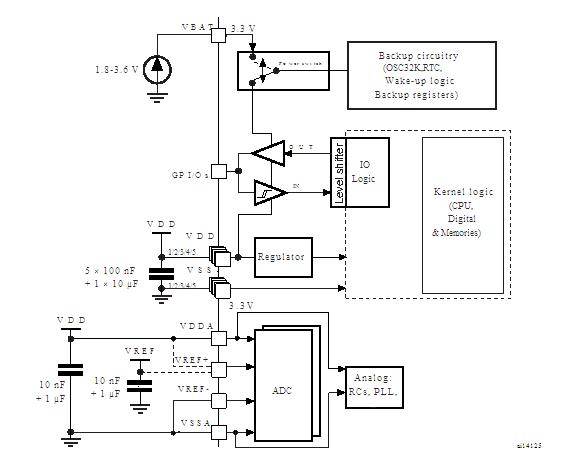

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STM32F103RBT6 |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 128K FLASH 20KB RAM |
Data Sheet |
|
|
||||||||||||
|
STM32F103RBT6TR |
STMicroelectronics |
ARM Microcontrollers (MCU) 32BIT Cortex M3 USB CAN 7 TMRS 2 ADCS |
Data Sheet |
|
|
||||||||||||
