Product Summary

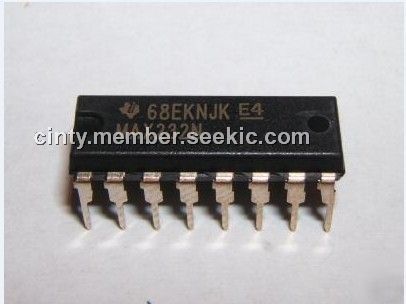

The MAX232N is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept ±30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC library.

Parametrics

Absolute maximum ratings: (1)Input supply voltage range, VCC: -0.3 V to 6 V; (2)Positive output supply voltage range, VS+: VCC . 0.3 V to 15 V; (3)Negative output supply voltage range, VS: -0.3 V to -15 V; (4)Input voltage range, VI: Driver: -0.3 V to VCC + 0.3 V; Receiver: ±30 V; (5)Output voltage range, VO: T1OUT, T2OUT: VS_-0.3 V to VS+ + 0.3 V; R1OUT, R2OUT: -0.3 V to VCC + 0.3 V; (6)Short-circuit duration: T1OUT, T2OUT: Unlimited; (7)Package thermal impedance, θJA (see Notes 2 and 3): D package: 73℃/W; DW package: 57℃/W; N package: 67℃/W; NS package: 64℃/W; (8)Operating virtual junction temperature, TJ: 150℃; (9)Storage temperature range, Tstg: -65℃ to 150℃.

Features

Features: (1)Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28; (2)Operates From a Single 5-V Power Supply With 1.0-uF Charge-Pump Capacitors; (3)Operates Up To 120 kbit/s; (4)Two Drivers and Two Receivers; (5)±30-V Input Levels; (6)Low Supply Current: 8 mA Typical; (7)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); (8)Upgrade With Improved ESD (15-kV HBM)and 0.1-uF Charge-Pump Capacitors is Available With the MAX202; (9)Applications: TIA/EIA-232-F, Battery-Powered Systems, Terminals, Modems, and Computers.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX232NE4
MAX232NE4
Texas Instruments
RS-232 Interface IC Dual EIA-232 Driver/ Receiver
Data Sheet
0-1: $0.65
1-25: $0.59
25-100: $0.46
100-250: $0.46
MAX232NSRE4
MAX232NSRE4
Texas Instruments
RS-232 Interface IC Dual EIA-232 Driver/ Receiver
Data Sheet
0-1400: $0.29
1400-2000: $0.26
2000-5000: $0.26
5000-10000: $0.25
MAX232NSRG4
MAX232NSRG4
Texas Instruments
RS-232 Interface IC Dual EIA-232 Driver/ Receiver
Data Sheet
0-1400: $0.29
1400-2000: $0.26
2000-5000: $0.26
5000-10000: $0.25
MAX232NSR
MAX232NSR
Texas Instruments
Buffers & Line Drivers Dual EIA-232 Driver/ Receiver
Data Sheet
0-1: $0.65
1-25: $0.51
25-100: $0.46
100-250: $0.44
MAX232N
MAX232N
Texas Instruments
Buffers & Line Drivers Dual RS232 Driver
Data Sheet
0-1: $0.52
1-25: $0.46
25-100: $0.35
100-250: $0.35
