Product Summary
The TA75074F is a J-FET input low-noise operational amplifier with low input bias and offset current, fast slew rate and wide bandwidth.
Parametrics
Absolute maximum ratings: (1)supply voltage, VCC: +18V; VEE: -18V; (2)differential input voltage, DVIN: ±30V; (3)input voltage, VIN: ±15V; (4)power dissipation, PD: 280mW; (5)operating temperature, Topr: -40~85℃; (6)storage temperature, Tstg: -55~125℃.
Features
Features: (1)low input bias current: 200pA max; (2)low input offset current: 50pA max; (3)high slew rate: 13V/μs; (4)low noise; (5)wide bandwidth: 3MHz; (6)wide supply voltage range: ±4~±18V; (7)internal frequency compensation; (8)output short circuit protection.

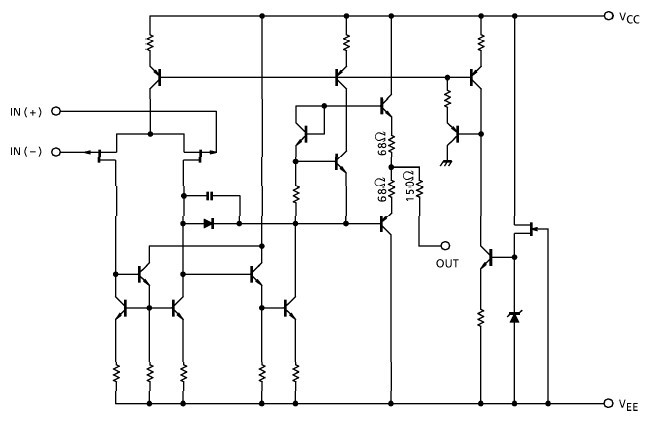

Diagrams
