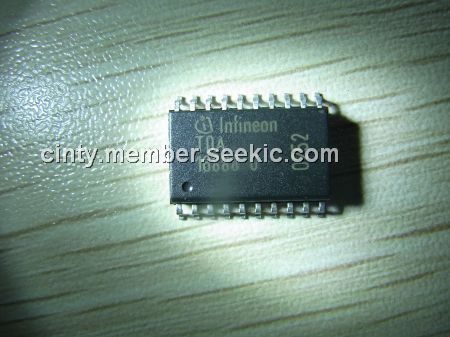

TDA16888

Power Combi Controller, High Performance, 1 A, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~4.00

PartNumber:: TDA16888

Brand:: Infineon Technologies AG - Infineon | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jimmy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-17

From Other Seller

Part Number:TDA16888
US $1.00 - 4.00
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
STRG6653

US $1.20 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The TDA16888 is a High Performance Power Combi Controller. The TDA16888 comprises the complete control for power factor controlled switchedmode power supplies. With its PFC and PWM section being internally synchronized, itapplies for off-line converters with input voltages ranging from 90 V to 270 V. While the preferred topologies of the PFC preconverter are boost or flyback, the PWM section can be designed as forward or flyback converter. In order to achieve minimal linecurrent gaps the maximum duty cycle of the PFC is about 94%. The maximum duty cycleof the PWM, however, is limited to 50% to prevent transformer saturation.

Parametrics

TDA16888 absolute maximum ratings: (1)VCC supply voltage: -0.3 to VZ3V; (2)ROSC voltage: – 0.3~8V; (3)SYNC voltage: – 0.3~8V; (4)PFC FB voltage: – 0.3~8V; (5)PFC IAC voltage: – 0.3~15V; (6)AUX VS voltage:– 0.3~8V; (7)Junction temperature:– 40~150℃.

Features

TDA16888 features: (1)IEC 1000-3 compliant; (2)Additional operation mode as auxiliary power supply; (3)Fast, soft switching totem pole gate drive (1 A); (4)Dual loop control (average current and voltage sensing); (5)Leading edge triggered pulse width modulation; (6)Peak current limitation; (7)Topologies of PFC preconverter are boost or flyback; (8)Continuous/discontinuous mode possible; (9)94% maximum duty cycle.
