Product Summary

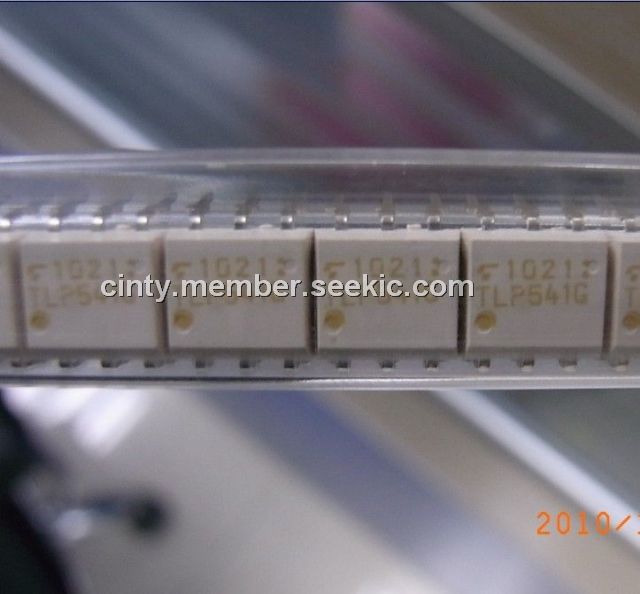

The TLP541G is a Photocoupler. It consists of a photo-thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package.
Parametrics
Absolute maximum ratings: (1)Forward current:70 mA ; (2)Forward current derating (Ta≥25℃):-0.7mA/℃; (3)Peak forward current (100 μs pulse, 100 pps):1A ; (4)Reverse voltage:5V ; (5)Junction temperature:125℃; (6)Peak forward voltage (RGK = 27kΩ):400V ; (7)Peak reverse voltage (RGK = 27kΩ):400V ; (8)On-state current:150 mA ; (9)On-state current derating (Ta≥25℃):-2.0mA/℃; (10)Peak one cycle surge current:2A ; (11)Peak reverse gate voltage:-5V ; (12)Junction temperature:100℃; (13)Storage temperature range:-55℃ to 125℃ ; (14)Operating temperature range:-30℃ to 100℃; (15)Lead soldering temperature (10 s):260℃; (16)Isolation voltage (AC, 1 min., R.H. ≤ 60%):2500 Vrms .
Features
Features: (1)Peak off-state voltage: 400 V (min.) ; (2)Trigger LED current: 7 mA (max.) ; (3)On-state current: 150 mA (max.) ; (4)Isolation voltage: 2500 Vrms (min.) ; (5)UL recognized: UL1577, file no. E67349.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLP541G |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
TLP541G(N,F) |
Toshiba |
Triac & SCR Output Optocouplers 400Vdrm 2500Vrms Low trigger current |
Data Sheet |
Negotiable |
|
||||
