Product Summary
The XCS30-3TQ144C is a high-volume production FPGA solution that delivers all the key requirements for ASIC replacement up to 40,000 gates. These requirements include high performance, on-chip RAM, core solutions and prices that, in high volume, approach and in many cases are equivalent to mask programmed ASIC devices.
Parametrics
XCS30-3TQ144C absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to +7.0 V; (2)Input voltage relative to GND(2,3): –0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output(2,3): –0.5 to VCC +0.5 V; (4)Storage temperature (ambient): –65 to +150 ℃; (5)Junction temperature Plastic packages: +125℃.
Features
XCS30-3TQ144C features: (1)First ASIC replacement FPGA for high-volume production with on-chip RAM; (2)Density up to 1862 logic cells or 40,000 system gates; (3)Streamlined feature set based on XC4000 architecture; (4)System performance beyond 80 MHz; (5)Broad set of AllianceCORE and LogiCORE predefined solutions available; (6)Unlimited reprogrammability; (7)Low cost.

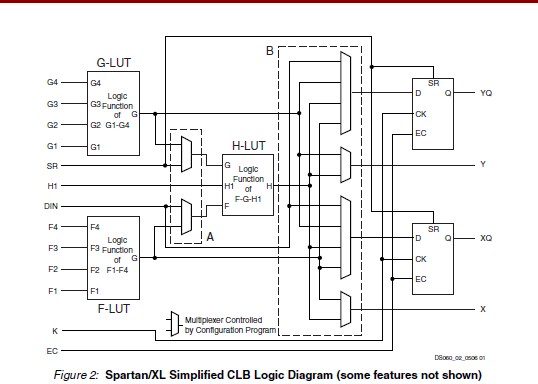

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 XCS30-3TQ144C |
|
IC FPGA 5V C-TEMP 144-TQFP |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
XCS30 and XCS30XL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
XCS30-3BG256C |
|
IC FPGA 5V C-TEMP 256-PBGA |
Data Sheet |
Negotiable |
|
||||
|
XCS30-3PQ208C |
|
IC FPGA 5V C-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS30-3PQ208I |
|
IC FPGA 5V I-TEMP 208-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS30-3PQ240C |
|
IC FPGA 5V C-TEMP 240-PQFP |
Data Sheet |
Negotiable |
|
||||
|
XCS30-3TQ144C |
|
IC FPGA 5V C-TEMP 144-TQFP |
Data Sheet |
Negotiable |
|
||||
