Product Summary

The TIP31C is a complementary silicon plastic power transistor.

Parametrics

Absolute maximum ratings: (1)Collecto-emitter Voltage: 100 Vdc; (2)Collector-base Voltage: 100 Vdc ; (3)Emitter-base Voltage: 5.0 Vdc; (4)Collector Current-Continuous: 3.0 Adc, Peak: 5.0 Adc; (5)Base Current: 1.0 Adc; (6)Total Power Dissipation @ TC = 25℃: 40 Watts, Derate above 25℃: 0.32 W/; (7)Unclamped Inductive Load Energy: 32 mJ; (8)Operating and Storage Junction: -65 to +150℃; (9)Temperature Range: -65 to +150℃.

Features

Features: (1)Collector-emitter Saturation Voltage: VCE(sat) = 1.2 Vdc (Max) @ IC = 3.0 Adc; (2)Collector-emitter Sustaining Voltage: VCEO(sus) = 100 Vdc (Min); (3)High Current Gain-Bandwidth Product fT = 3.0 MHz (Min) @ IC = 500 mAdc; (4)Compact TO-220 AB Package.

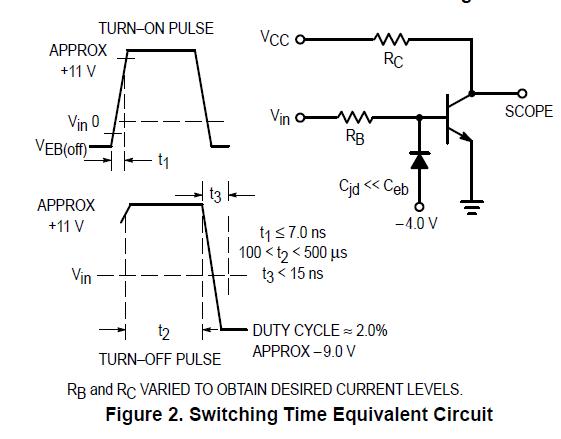

Diagrams
