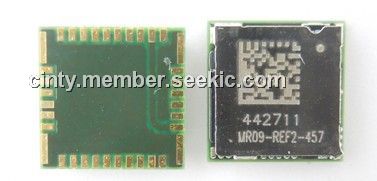

Product Summary

The WM-G-MR-09 is a wireless LAN module. Its external sleep clock pin (SLEEP_CLK) is powered from VDD_SHI Voltage Supply.

Parametrics

WM-G-MR-09 absolute maximum ratings: (1)Ambient Operation Temperature: -10℃ to 65℃; (2)Relative Humidity: 95%; (3)Power supply voltage with respect to GND VDD_33: 3.0 V to 3.6 V.

Features

WM-G-MR-09 features: (1)Operating Frequency: 2.4GHz ISM band; (2)Supports 3-wire BT coexistence scheme for an external BT solution; (3)36pin LGA.

Diagrams

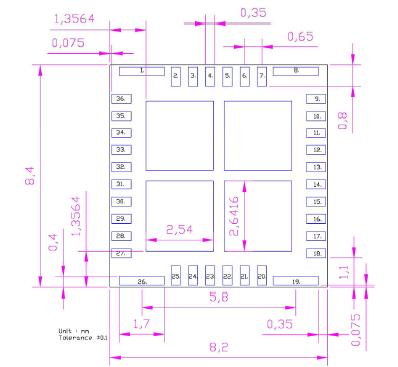

WM-G-MR-09 package dimensions
